I recently worked on adding outlier detection in a data pipeline. As a person primarily focused on backend and infra work, I thought this would be a good opportunity to brush up my statistics knowledge and learn some sophisticated outlier detection algorithms. Even though I did learn a few things along that line, I ended up learning something far more valuable. This article aims to compile my learnings on the subtle art of storytelling with data.

Whether you are a data scientist or a researcher or a developer, this applies to everyone. When preparing visuals to present in a slide deck or writing a technical documentation or even a research paper, it’s far more important to tell a story with whatever you are trying to convey. A compelling narrative is more effective than just facts in terms of getting your message across.

This article will be broadly divided into two major sections. Part one is about storytelling as a powerful communication technique, and the second part would be around how to effectively do that with data and visualization.

Most of the learnings came from this amazing book storytelling with data by Cole Nussbaumer Knaflic. I highly recommend it.

Part 1: Storytelling

Stories are one of the most powerful medium of communication. People remember compelling stories. Fact retention is effectively amplified with a supporting narrative attached to them.

Structure

A compelling story must have a structure. A coherent and logical flow that the audience can follow.

A typical story will have three acts:

• the first act sets up the story by introducing characters, the relationships between them, the world they live in. This is also when a meaningful stake is established. Typically introducing a dramatic incident along which the characters will have to (re)act.

• the second act makes up the bulk of the story revolving around the characters’ attempt to solve the problem introduced in act one, going through changes as a result of what’s happening (character development).

• the third act resolves the story with a climax where tensions are at the highest point. This is where the dramatic question introduced in the first act is answered and concluding the character development for the major character(s).

This is a tried and tested storytelling approach and works quite well. But this doesn’t have to be rigid. There are other effective structures as well:

• Problem, Solution, CTA: This is a very common variant and very popular in the sales world. You introduce a problem with meaningful stake (first act), then you provide a solution (whatever you are trying to sell) and explain how that thing solves the problem (second act), and finally you ask for a call to action (CTA) to buy whatever you are trying to sell.

• What, So what, Now what: This is my favorite. I have successfully employed this in various situations ranging from architectural discussions to impromptu public speaking.

  • what: This is your stance on a topic. For example, you were asked to evaluate a design decision. The “what” is where you state your stance.
  • so what: This is where you explain your stance, provide reasonings, explain why you think what you think and why should anyone care about what your stance is.
  • now what: This is where you state the next steps, the call to action (CTA) and bringing it altogether by giving a concrete take-away that your audience can act (or think) upon.

  This is also very useful when you are thinking on your feet. It helps to keep your response concise and without ramblings.

• what if you could.., so that.., for example.., and that’s not all..: This is a very common pitching technique.

  • you introduce something interesting with “what if you could do <insert interesting thing>”
  • you expand with listing some benefits “so that <insert way(s) how that interesting thing could help the other person>”
  • add specificity “for example <insert a concrete example of the interesting thing would work>”
  • bringing finality with “and that’s not all, <insert any additional benefits that the interesting thing could/would do>”

You might notice all the variants are somewhat similar with congruence to the 3 acts storytelling. It depends on the specific situation and which one you might want to employ. But with practice you can internalize the structures and will be able to employ the “right one” for the right situation.

Audience

The second important thing to remember is who is your audience, what do they care about, what do you want them to know.

If you are presenting something to a tech-lead, the content and details will be very different from what you would have to present to an exec or a VP. The former would expect a lot of technical details, whereas the latter would expect impact and bottom line on the business outcome.

This requires you to think and curate the content differently. You might have to prepare different docs/slide deck for different audience segment focusing on what each segment would care about.

Medium

The medium plays an important role here. Presenting live from a slide deck is very different from sending doc or an email on the same topic.

When you are presenting live, you have a high level of control. You can slow down and bring audience’s attention to a specific thing that you want them to take a closer attention and speed up on the things that are tangential or supporting facts. In this medium you have the luxury of not having to add all the details as you are there to answer if and any questions that might arise.

But if you are sending documentation or an email, you have very little control how your audience might read it or where they would slow down or pay attention. You have to anticipate all the questions each reader might have. So you have to be very detailed, so that in case any questions arise, the documentation would have an answer.

It’s a good idea to provide a tl;dr or an executive summary in the beginning and details afterwards. This provides a nice balance between what’s most important first for people who would skim and details for those who would care about details.

Part 2: Effective data visualization

The second part of storytelling with data is all about how to effectively present data to bolster your message. This involves:

• choosing the right visuals
• eliminating clutter from the visuals
• focusing audience’s attention to the right place

Every time you present a chart/graph or any kind of visuals, you have to be very cautious about the “perceived cognitive load” of the audience. When you present a visual that has:

• too many elements whether it’s data or labels.
• too many different concepts in one chart/graph.
• uncommon chart/graphs.

The audience very quickly makes a subconscious decision whether it’s too hard to perceive and potentially switch off. So you want to make your visual as simple, clear, and to the point as possible, so that your audience’s perceived cognitive load is minimal and you keep their attention on the thing you are trying to convey.

Choosing the right visuals

It’s important to choose the right type of visual for the thing you are trying to convey. Firstly you want to choose something that’s common and familiar as much as possible.

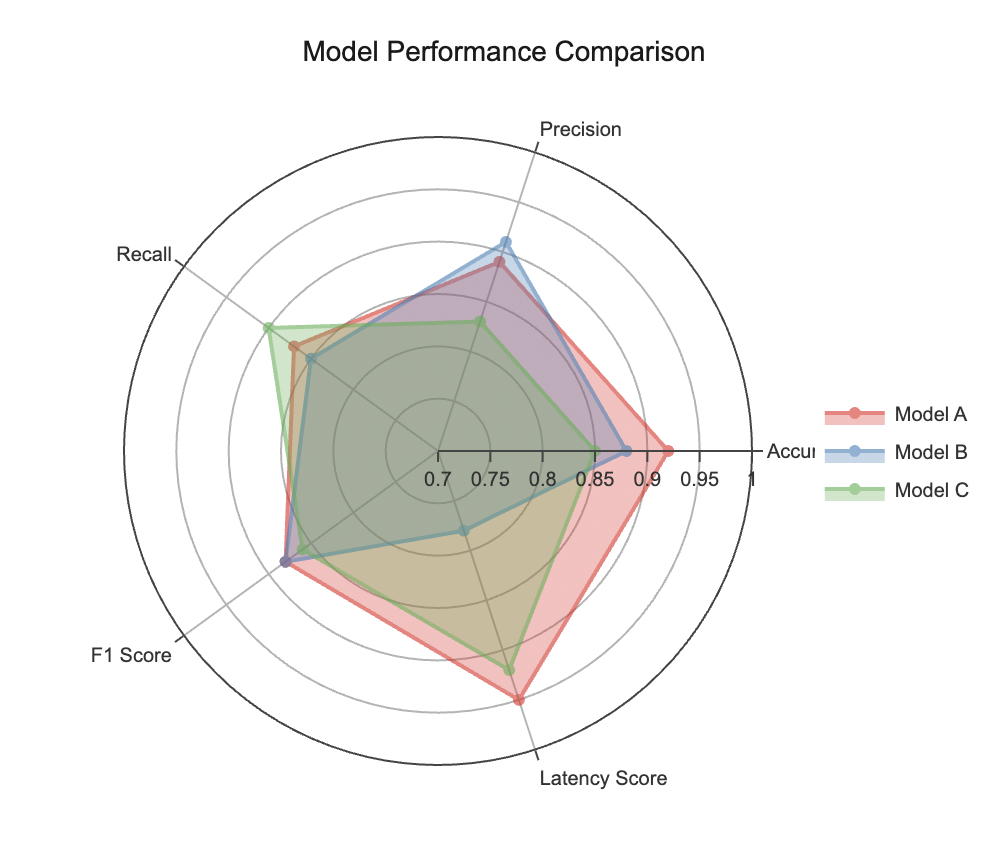

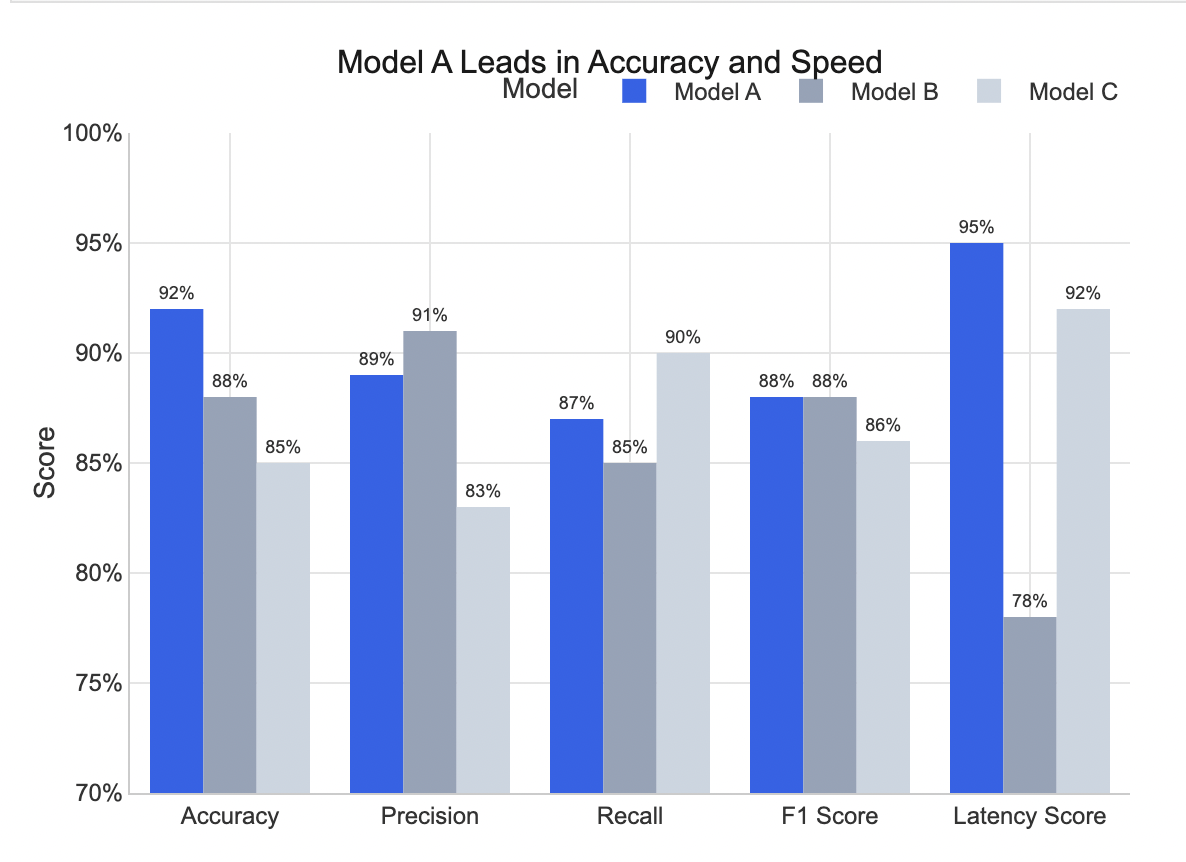

For example, line and bar charts are very common and most people know how to interpret them. On the other hand waterfall or radar charts are not very common. So it would take more effort for an audience to interpret radar charts.

Reduce clutter as much as possible

Each chart/graph should have a goal and a specific message or revelation. And you should ruthlessly declutter and keep only the necessary things that achieves that goal and convey that message.

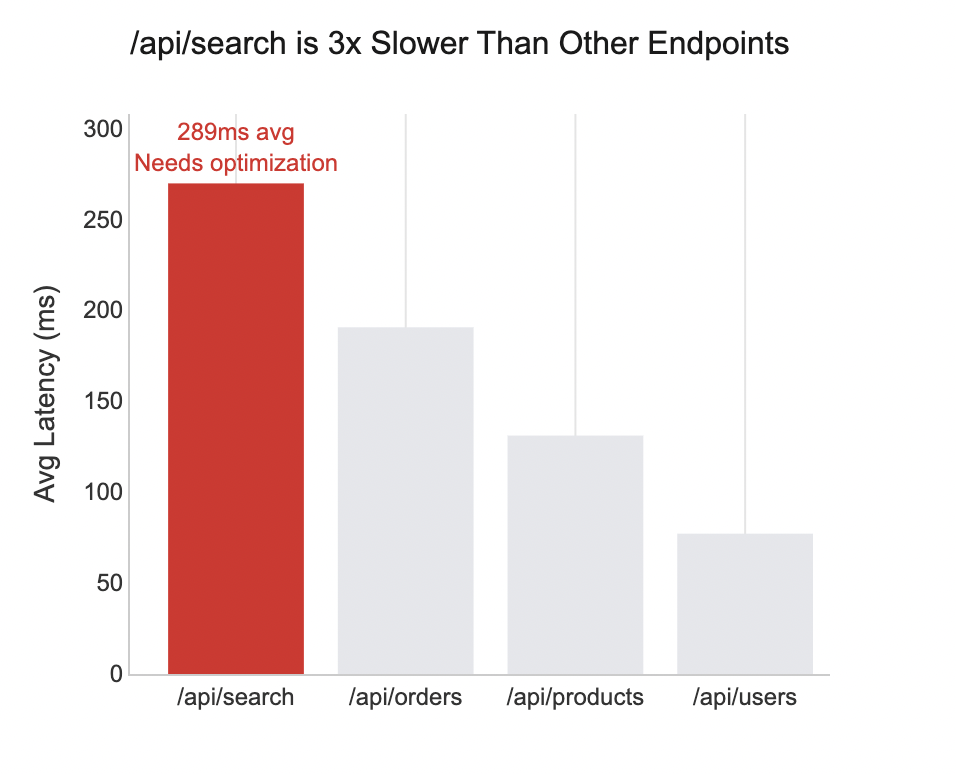

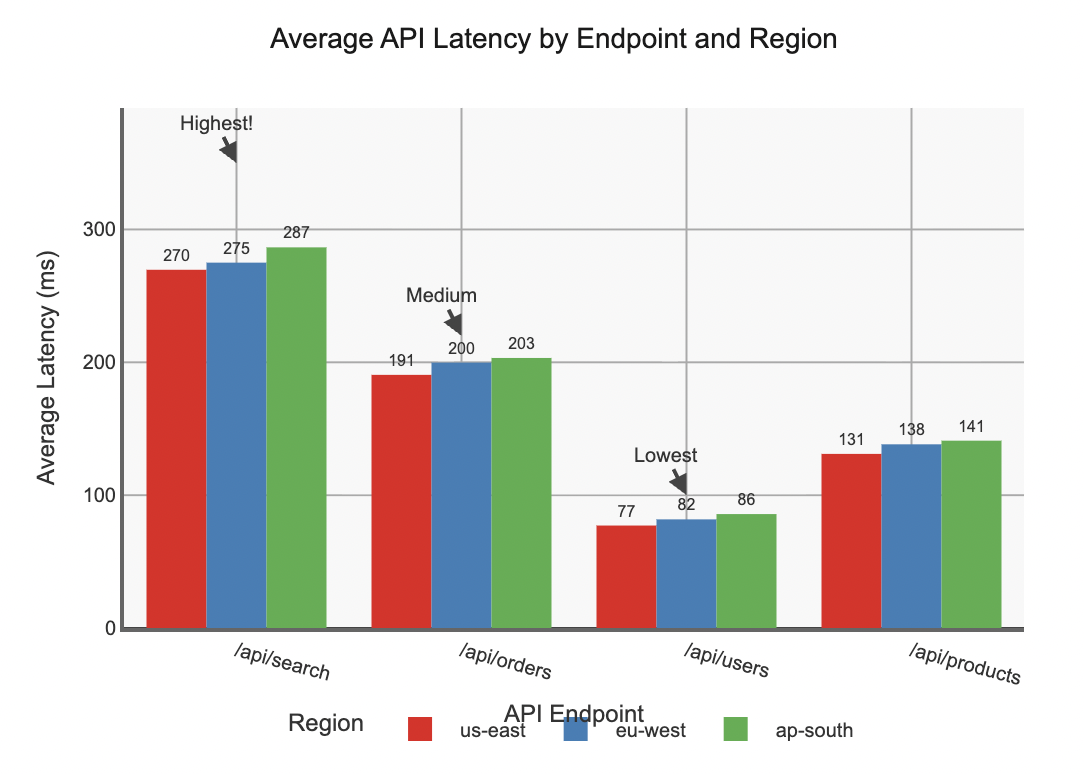

For example, the following chart on the left shows latencies for 3 different regions per API. Whereas the chart on the right removes the region dimension. The goal here is to show that a certain endpoint is slow. Breaking down per region adds no additional value; it only adds noise and derails the focus.

Text and annotation is your friend

You also need to be mindful about too much decluttering. Plain isn’t always better. Sometimes adding annotation to highlight specific things is very important.

For example, the text annotation on the right chart makes it very easy to interpret what happened and when.

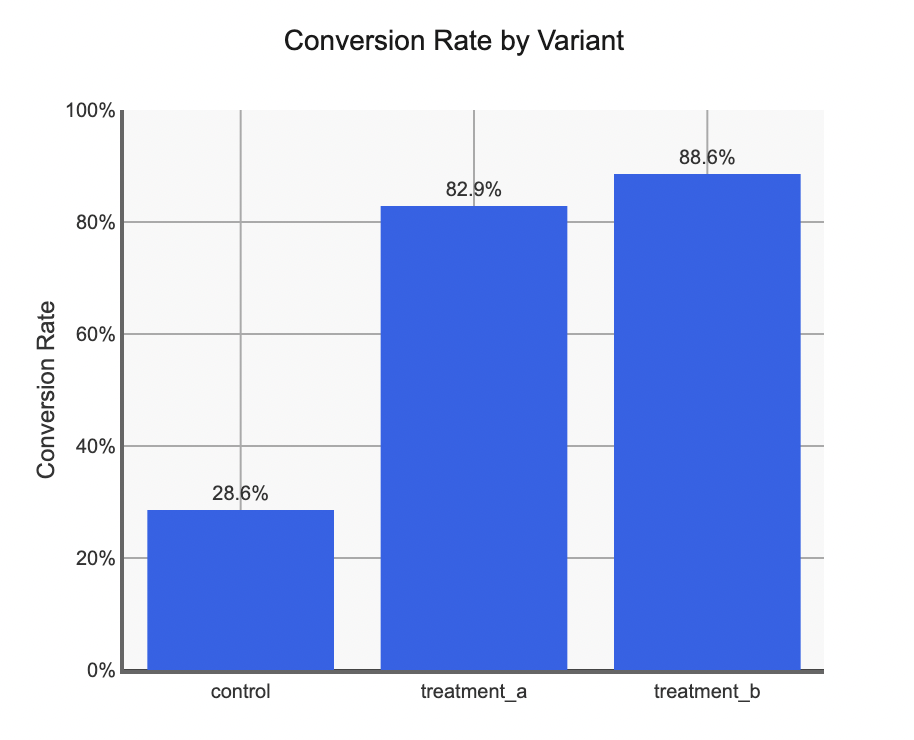

Use colors and contrast strategically

Our brains are wired to interpret colors and contrast differently. A bright color or large text immediately captures our attention. Use this to your advantage. Pinpoint specific parts where you want your audience’s attention.

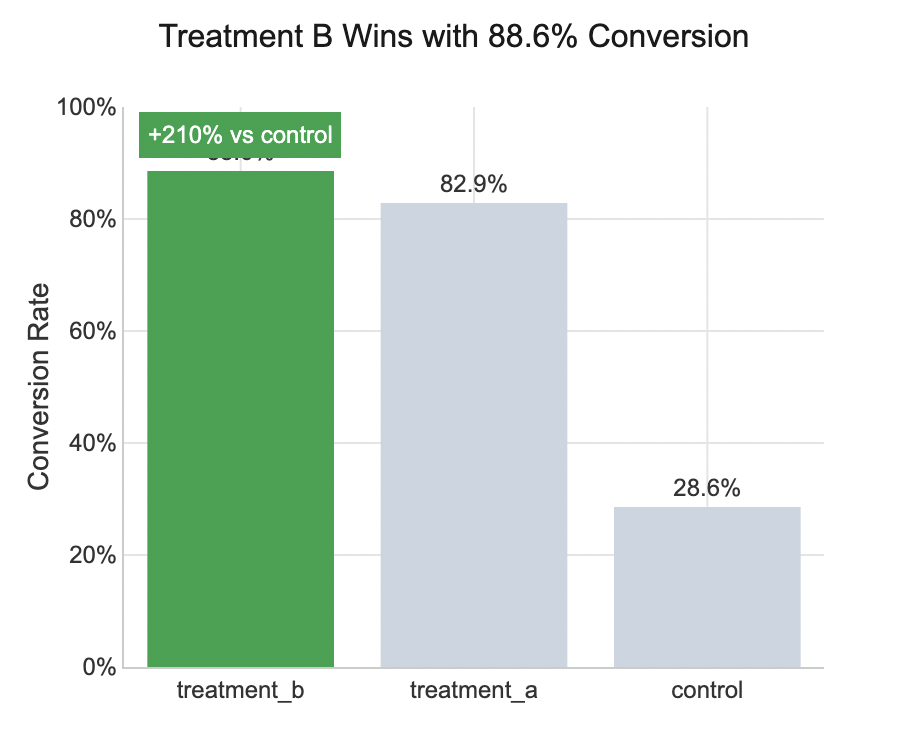

For example, when you see the chart on the right, you immediately know where to focus.

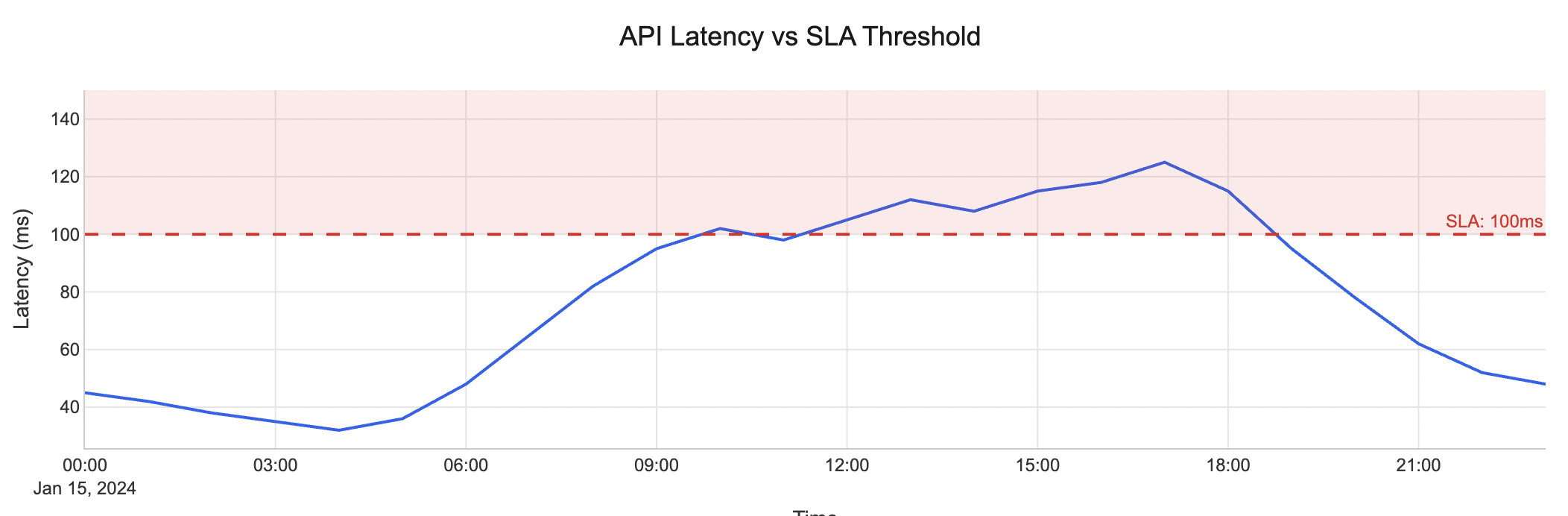

Add context and references

Sometimes it’s also a good idea to add a reference point with the use of colors and contrast. For example, illustrating latency could be put into perspective against SLA (service level agreements) to demonstrate how the system is performing.

Without a reference point, the chart lacks context. It adds an implied call to action (CTA) that SLA is being violated and it requires attention.

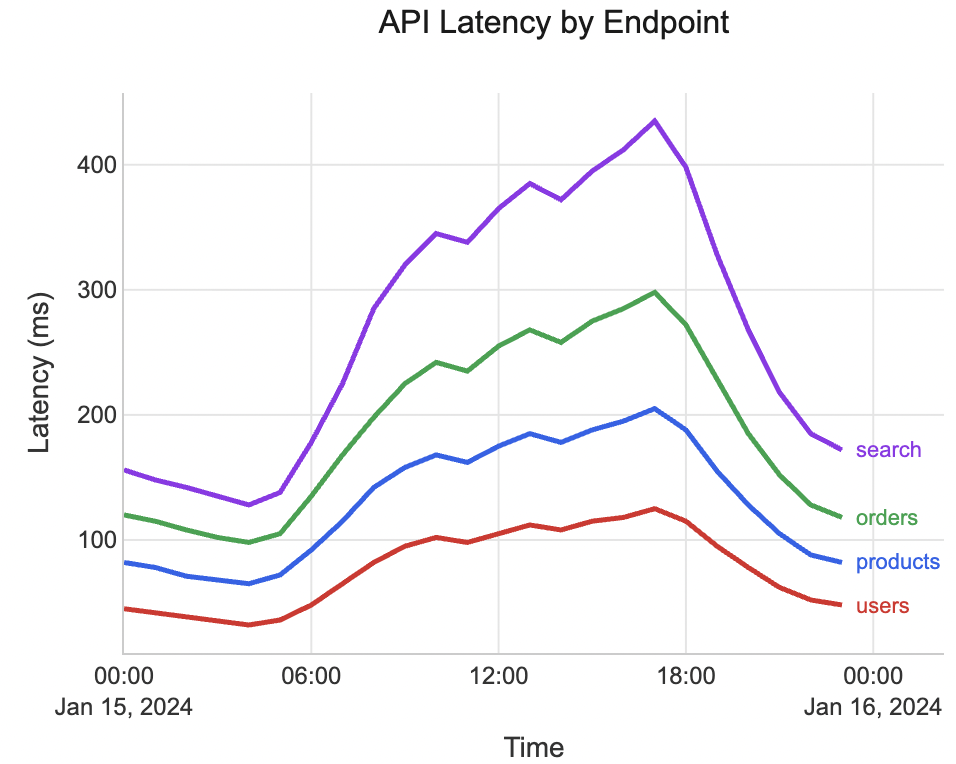

Reduce friction between legends and data

You want to avoid too much back and forth between legends at the bottom and the data. Adding the legend next to the data would help your audience to quickly understand what’s what.

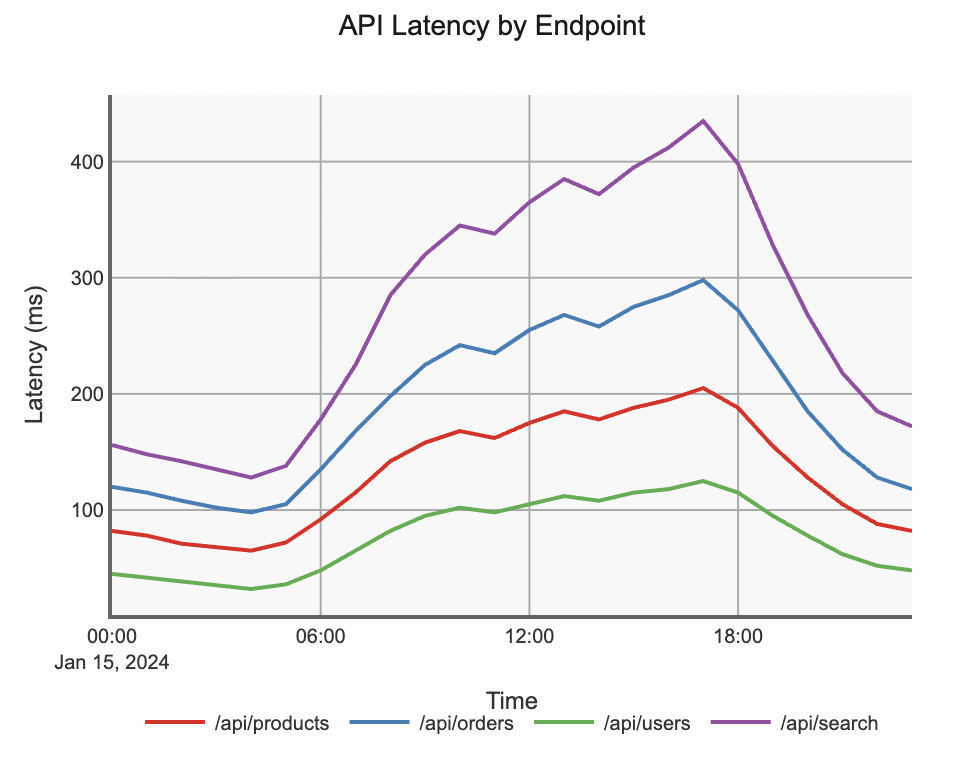

For example, the chart on the left requires you to constantly go back and forth between the legends at the bottom and the line charts to understand which colored line means what. Whereas the chart on the right removes this back and forth. It’s immediately known which line means what.

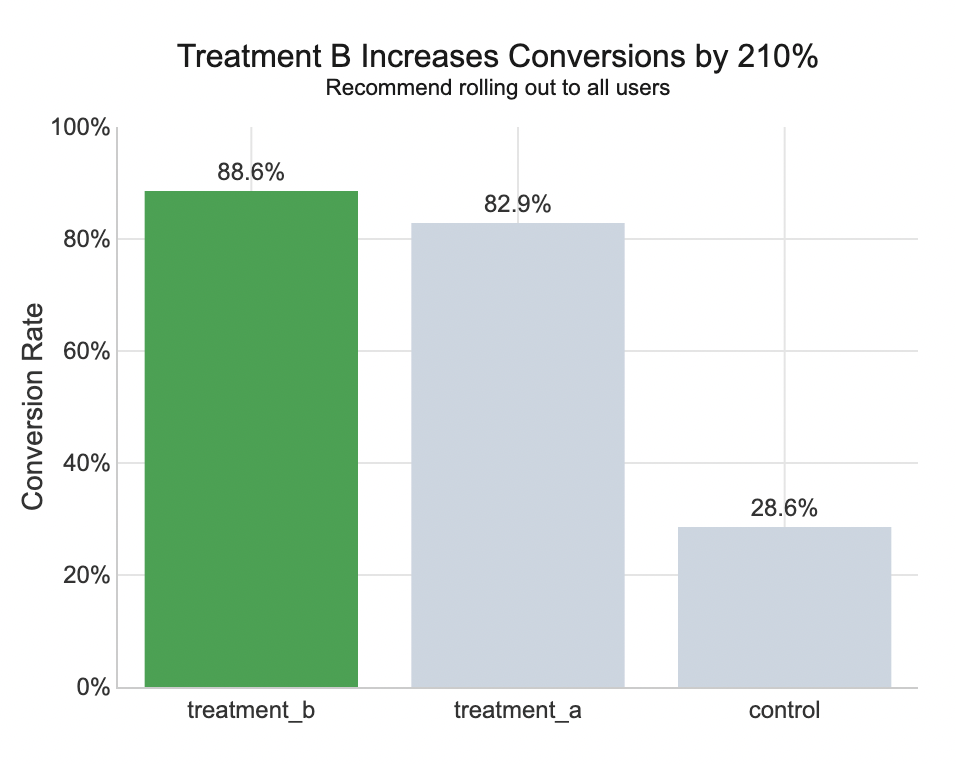

Add an actionable title

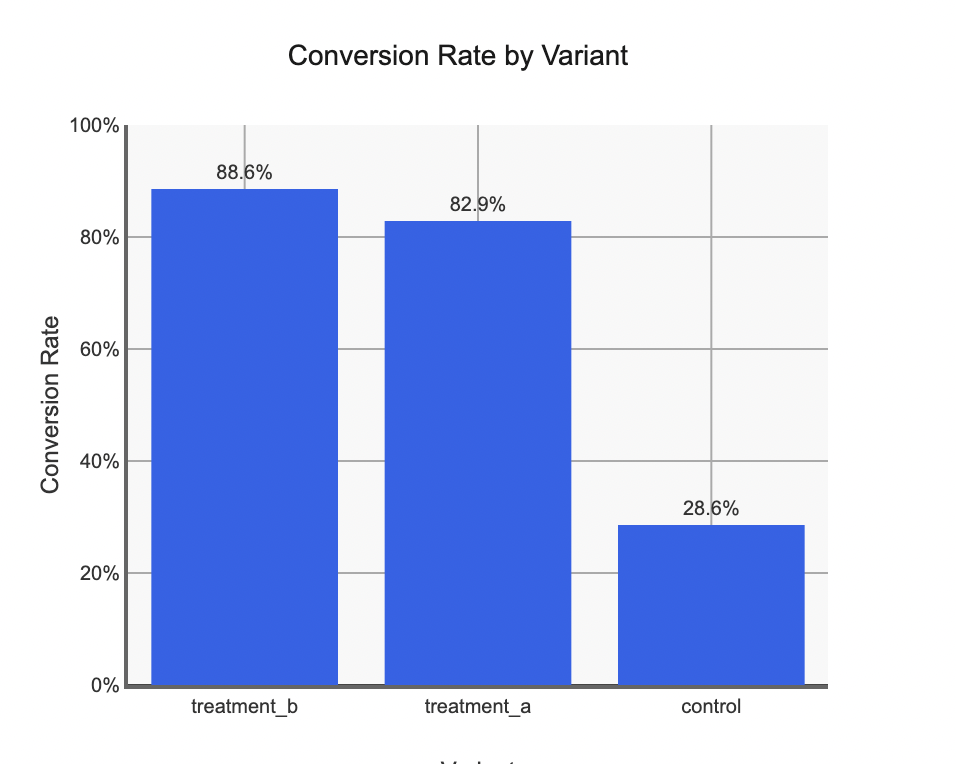

Each chart should have an actionable title instead of a generic one. The title should answer the “So what?” by telling what’s the meaning, the insight or simply a call to action (CTA).

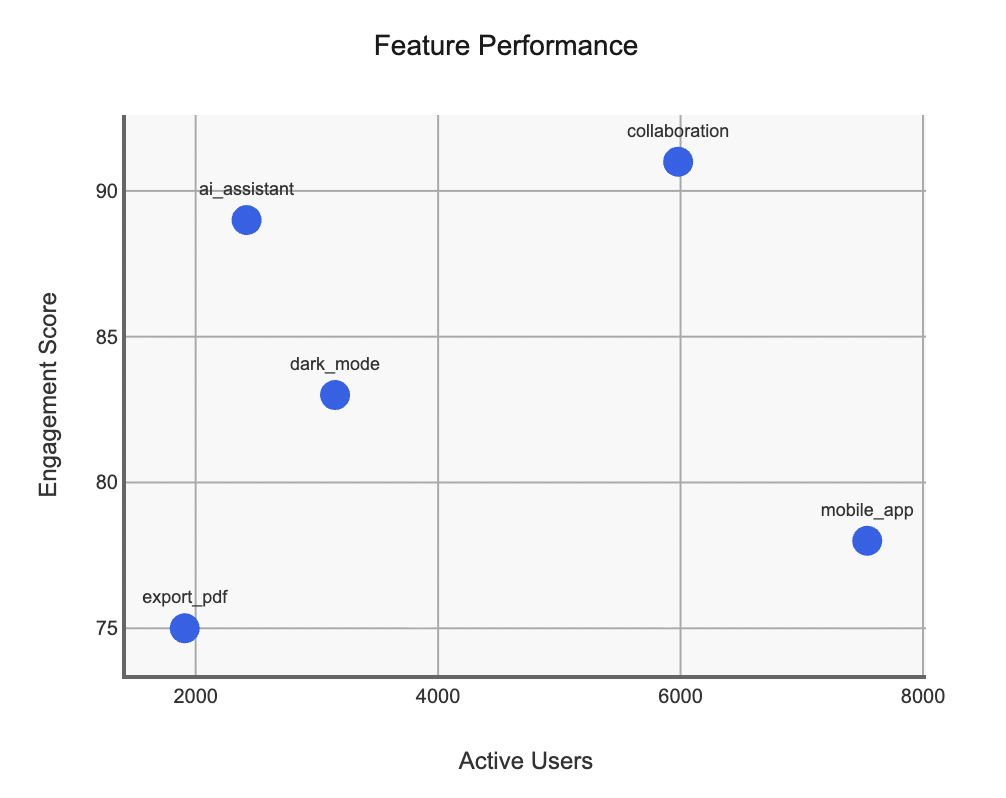

Add a visual hierarchy

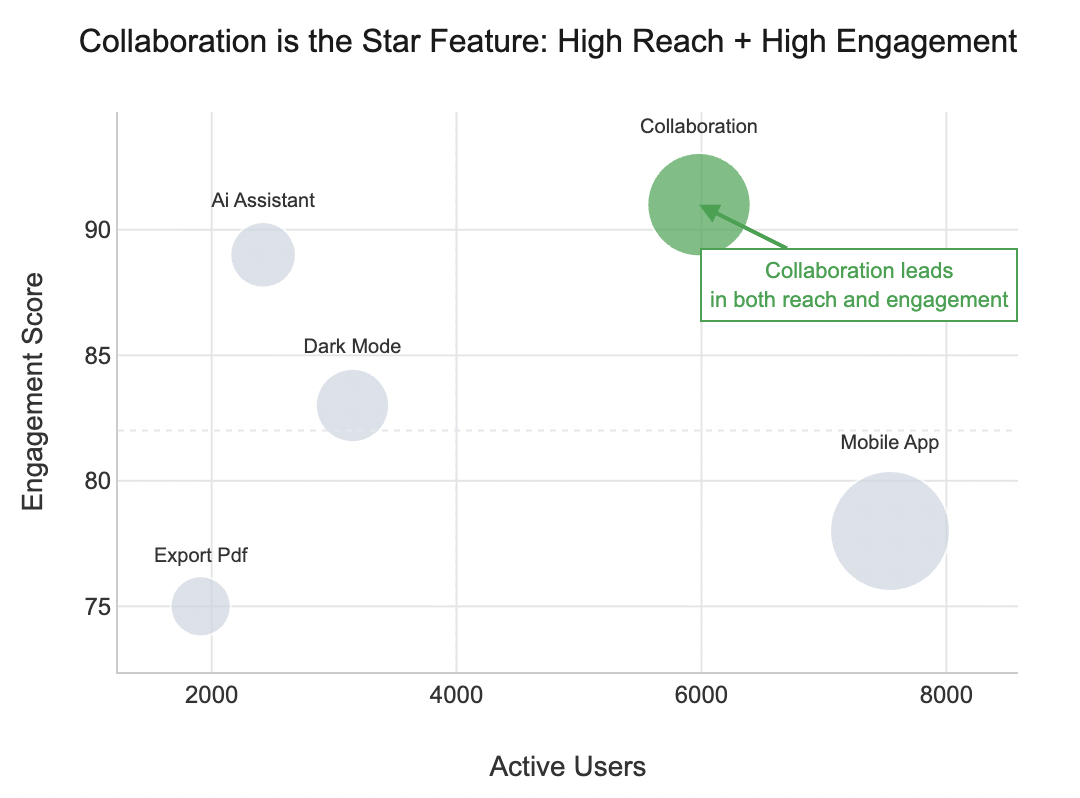

Ideally there should be a visual hierarchy to help users understand in which order to read the data. This is typically achieved by size, color, position and/or annotation. For example, larger marker can help drawing attention as well as encode a data dimension.

These are my key take-aways and learnings. But there are a lot more nuances to these. You can (and should) checkout the book storytelling with data for more details.

Be mindful about narrative flow

It is very important to be mindful about the coherence and flow between different charts. Your visual elements and data should be in support of the story structure and narrative you decided to tell in the beginning. There should be a logical flow from one chart to the next and each one should drive the story forward in a compact manner. You should constantly be asking whether this supports the narrative or just adds unnecessary noise.

Recap

• Choose a structure for your story. Think about the narrative you want to deliver through data.
• Curate the content with the audience in mind. Focus on what you want them to know and what they would care about.
• Be mindful about the medium and amount of details different medium would demand.
• Choose the right visual, free up clutter, redirect focus and attention to where you want them.
• Provide context, meaningful title, and visual orders that helps convey the message.
• Maintain a coherent and logical flow between visual elements and the overall narrative.

Personal notes

• All the charts in this article are made with plotly. It’s quite good and has good integration with jupyter and more importantly you can make interactive charts with it, which is quite cool.
• I deliberately chose different examples (data and/or charts) to illustrate different visualizing techniques rather than what the book has. I found it better for retention of knowledge as well as act as active learning rather than a passive one.
• The book was recommended by one of my colleagues. I couldn’t thank him enough. It was a great read.
