How LSP works: Building an LSP Server from Scratch with Rust
[ lsp rust neovim developer-tools ] · 19 min read

What is LSP?

Language Server Protocol (LSP) is what powers code intelligence in modern editors/IDEs. So things like auto completion, go to definition/references, or showing diagnostics and lint errors are all delivered within your favourite editor through LSP.

But let’s start with the problem first, so that you can understand the painpoints before LSP and how it solves that problem in an elegant way.

The Problem

Imagine you are building a new editor and you want to support the go to definition/references feature. Meaning when the user clicks on a function/method name, you want to navigate to the place where that function/method is defined in the codebase.

Now roughly this is what you would need to do to support this feature:

Take the following code example, we have two classes and both have a method with the same name (area). So you need to differentiate between two methods by resolving the scope and type to determine the context/meaning of each one.

class Rectangle:
    ...
    def area(self):
        return self.height * self.width
    ...

class Square:
    ...
    def area(self):
        return self.side * self.side
    ...
obj = Rectangle(3, 4)
# --> Type resolution will have to figure out
# --> this obj is actually a Rectangle object
# --> And area method belongs to the Rectangle class and not the Square one
res = obj.area()

This is a substantial task - and we have only covered one feature for one language! But let’s say you have pushed through and built the feature for Python because that’s the language you use. Then you shared the editor to some of your friends. They started using it. But one of them exclusively works with Javascript. So he asks you to implement the feature for Javascript!!

You implement all the syntactic and semantic analysis for Javascript. Your friend is happy.

Then someone else reaches out and they want you to support the feature for Rust.

Do you see the problem..?? And all this for just one feature!!

In a world, if you have N number of editors and M number of programming languages, The above mentioned way would require NxM implementations for any one of the intelligence features.

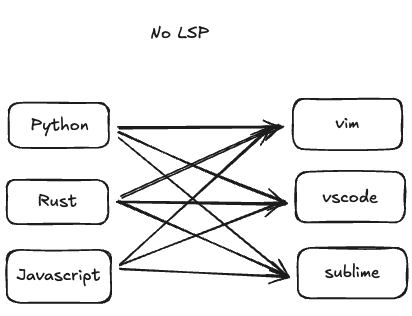

No LSP Architecture
Figure 1: Architecture without LSP

The Solution

This is where LSP comes in. The idea is to standardize the protocol for how such language feature implementations and development tool(editor) communicate. So a single implementation of a language specific implementation can be re-used in multiple development tools.

This is a win for both development tool developers and language providers. Both can focus on their specific tooling.

With N number of editors and M number of programming languages, LSP reduces the required implementations to be N+M

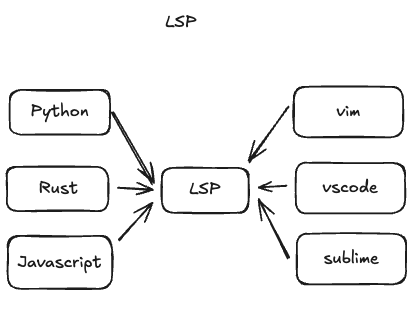

LSP Architecture
Figure 2: Architecture with LSP

Bottom Line: LSP reduces the complexity from polynomial (O(N*M)) to linear (O(N+M))

Technical Terms

Before we dive deep into technical specifics, let’s define the terms that I will use throughout the article -

How it works

The architecture is similar to client-server systems that might be already familiar with. A typical flow roughly looks like this -

  1. Document Lifecycle: You open a python file in your editor(the Client). This does a few things:
    • start the python specific language server(the Server) and attach it to the buffer.
    • Client sends an initialize request to the Server asking it to initialize.
    • Server acknowledges the request and sends back list of things the Server is capable of doing for this type of document.
    • Followed by a successful initialization, a notification is sent from the Client to the Server with document URI, full text content, language identifier. From now on, the source of truth about the document content is maintained by the Server in memory. Any changes to the document must be synchronized between Client and Server.

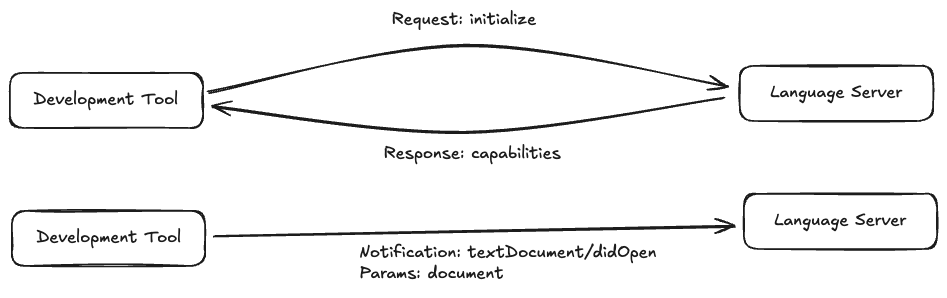

LSP didOpen Flow
Figure 3: LSP flow for document open
  1. Feature Requests: You execute a “go to definition” request for a symbol:
    • Client sends a notification/request to the Server asking where is the definition of this particular symbol?
    • Server looks up the symbol table and returns the line number where the definition of that particular symbol is located.
    • Client parses the response and navigates to that line number.

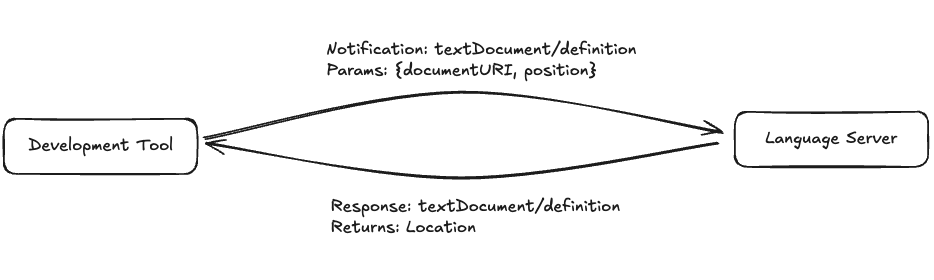

LSP Go to Definition Flow
Figure 4: LSP flow for Go to definition

Key LSP methods

See the official doc for full reference

JSON-RPC Communication Mechanism

LSP uses stdin/stdout for JSON-RPC communication between Client and Server and stderr is used for debugging and logging.

The communication flow:

  1. Editor to LSP Server (stdin): Editor sends JSON-RPC requests like textDocument/didSave through stdin.
  2. LSP Server to Editor (stdout): Server sends JSON-RPC responses and notifications like textDocument/publishDiagnostics through stdout.
  3. LSP Server to Log file (stderr): Debug and server log statements go to stderr, which is redirected typically to a log file like lsp.log.

Example Request-Response object

Here’s what an actual request-response looks like for Go to definition:

Request:

{
    "jsonrpc": "2.0",
    "id" : 1,
    "method": "textDocument/definition", # what's the type of request?
    "params": {
        "textDocument": {
            "uri": "file:///path/filename.py" # which file?
        },
        "position": { # what's the position of the symbol inside the file?
            "line": 3,
            "character": 12
        }
    }
}

Response:

{
    "jsonrpc": "2.0",
    "id": 1,
    "result": {
        "uri": "file:///path/filename.py", # The file path where the definition can be found

        # The position(line/column number) in the file where the definition can be found
        "range": {
            "start": {
                "line": 0,
                "character": 4
            },
            "end": {
                "line": 0,
                "character": 11
            }
        }
    }
}

Extending LSP: beyond programming language features

What makes the LSP specially interesting is it’s extensibility. While it started out for providing language specific features, it can provide all kinds of capabilities.

One of the most interesting non-language specific capability is AI code suggestions/assistance.

Take github copilot for example. What it does essentially is - based on your recent change, it uses an LLM to provide suggestions/completions. The LLM inference mechanism isn’t tied to any specific language. The core flow is same for all language.

The textDocument/inlineCompletion request is used to provide inline(“ghost text”) completion. This is added in the 3.18 version of the LSP spec. Similarly a custom method (not part of the spec yet) textDocument/copilotInlineEdit is used to provide “next edit” suggestions.

And the idea is your editor/IDE doesn’t have to handle LLM inference, request/response parsing etc. It can just use/call the inlineCompletion and copilotInlineEdit capabilities to get the suggestions. And you can use copilot’s lsp server to get completion from github models or you can build your custom language server that uses whichever model you prefer. For example, hugging face has a version of this called llm-ls.

One more cool thing, the LSP client doesn’t have to be an editor/IDE. It can be any other development tool. For example, Claude Code now supports native LSP and you can setup LSP tools that provides code semantics directly to the LLM. This means Claude Code can access your codebase’s type information and symbol tables directly to get the “correct” scope and signatures, reducing scope for hallucination.

Let’s build one

At this point, you should have a good understanding the concepts of LSP. So let’s build a language server to see how different methods work in practice.

Scope & Goals

We will build a language server that:

What it would look like in action:

Grammar LSP Demo
Figure 5: Grammar LSP Demo

The goal is to:

Also it’s simple and as it doesn’t operate on code, so doesn’t require semantic analysis.

Implementation Steps

  1. Step 1: Minimal LSP server (initialize + shutdown)
  2. Step 2: Document Synchronization (didOpen + didChange + didClose)
  3. Step 3: Publishing diagnostics (didSave + publishDiagnostics)
  4. Step 4: Grammar checking (LLM integration)

See the full code in the github-repo

Setup and prerequisite

Before we start, setup the development environment:

  1. Download and install Ollama and pull one of the smaller models.(I recommend gemma3:4b which I used to test)
    ollama pull gemma3:4b
ollama serve # keep this running in a terminal
  2. Install Rust
  3. Create a project: cargo new grammar-lsp
  4. Add the following dependencies in the Cargo.toml:
    [dependencies]
tower-lsp = "0.20" # LSP boilerplate implementation
tokio = { version = "1", features = ["full"] } # Async runtime
serde = { version = "1.0", features = ["derive"] } # serialization
serde_json = "1.0" # json parsing
dashmap = "6.1" # thread-safe HashMap to store the document content
reqwest = { version = "0.12", features = ["json"] } # http client

Step 1: Minimal LSP Server

Let’s start with the absolute minimum - a server that responds to initialize and shutdown requests.

// src/main.rs
use tower_lsp::jsonrpc::Result;
use tower_lsp::lsp_types::*;
use tower_lsp::{Client, LanguageServer, LspService, Server};

#[derive(Debug)]
struct Backend {
    client: tower_lsp::Client,
}
impl Backend {
    fn new(client: Client) -> Self {
        Self { client }
    }
}

#[tower_lsp::async_trait]
impl LanguageServer for Backend {
    async fn initialize(&self, _: InitializeParams) -> Result<InitializeResult> {
        Ok(InitializeResult {
            capabilities: ServerCapabilities::default(),
            server_info: Some(ServerInfo {
                name: "grammar-lsp".to_string(),
                version: Some("0.1.0".to_string()),
            }),
        })
    }
    async fn initialized(&self, _: InitializedParams) {
        self.client
            .log_message(MessageType::INFO, "Grammar LSP initialized")
            .await;
    }
    async fn shutdown(&self) -> Result<()> {
        Ok(())
    }

}

#[tokio::main]
async fn main() {
  let stdin = tokio::io::stdin();
  let stdout = tokio::io::stdout();

  let (service, socket) = LspService::new(|client| Backend::new(client));

  Server::new(stdin, stdout, socket).serve(service).await;
}

Key things to notice:

Step 2: Document Synchronization

Next we will track document content and implement the document synchronization.

First add DashMap to store and track documents. As we are using Tokio async runtime, it’s possible to receive multiple method request simultaneously. So a regular HashMap would cause data races. DashMap provides thread-safe concurrent access.

use dashmap::DashMap;

#[derive(Debug)]
struct Backend {
    client: tower_lsp::Client,
    documents: DashMap<String, String>, // URI -> document content
}
impl Backend {
    fn new(client: Client) -> Self {
        Self {
            client,
            documents: DashMap::new(),
        }
    }
}

Next add the document lifecycle LSP methods (add to the LanguageServer impl):

async fn did_open(&self, params: DidOpenTextDocumentParams) {
    let uri = params.text_document.uri.to_string();
    self.documents.insert(uri, params.text_document.text);
}

async fn did_change(&self, params: DidChangeTextDocumentParams) {
    if let Some(change) = params.content_changes.first() {
        let uri = params.text_document.uri.to_string();
        self.documents.insert(uri, change.text.clone());
    }
}

async fn did_close(&self, params: DidCloseTextDocumentParams) {
    let uri = params.text_document.uri.to_string();
    self.documents.remove(&uri);
}

key things to notice:

Next advertise these capabilities by updating the initialize method:

async fn initialize(&self, _: InitializeParams) -> Result<InitializeResult> {
    Ok(InitializeResult {
        capabilities: ServerCapabilities {
            text_document_sync: Some(TextDocumentSyncCapability::Options(
                TextDocumentSyncOptions {
                    open_close: Some(true), // We handle didOpen/didClose
                    change: Some(TextDocumentSyncKind::FULL), // Send full doc on change
                    ..Default::default()
                },
            )),
            ..Default::default()
        },
        server_info: Some(ServerInfo {
            name: "grammar-lsp".to_string(),
            version: Some("0.1.0".to_string()),
        }),
    })
}

Note on TextDocumentSyncKind::FULL: This is very bad, I know. It means everytime any change happens, the client will send the full content, which is not optimal at all.

In a production system, the sync would happen incrementally with TextDocumentSyncKind::INCREMENTAL, meaning the client will only send the changeset.

I think for our use case, this is an acceptable corner to cut, given this is to illustrate LSP functionalities and not to build a production system.

Step 3: Publishing Diagnostics

Now let’s add the core functionality: checking grammar on save and publishing errors as diagnostics.

Add the didSave method handler (add to LanguageServer impl):

async fn did_save(&self, params: DidSaveTextDocumentParams) {
    let uri = params.text_document.uri.to_string();

    if let Some(text) = self.documents.get(&uri) {
         // Check grammar and get diagnostics
        let diagnostics = self.check_grammar(&params.text_document.uri, &text).await;

        // Publish diagnostics back to the client
        self.client
            .publish_diagnostics(params.text_document.uri, diagnostics, None)
            .await;
    }
}

Add the save capability in the initialize method:

async fn initialize(&self, _: InitializeParams) -> Result<InitializeResult> {
    Ok(InitializeResult {
        capabilities: ServerCapabilities {
            text_document_sync: Some(TextDocumentSyncCapability::Options(
                TextDocumentSyncOptions {
                    open_close: Some(true),
                    change: Some(TextDocumentSyncKind::FULL),
                    save: Some(TextDocumentSyncSaveOptions::SaveOptions(SaveOptions {
                        include_text: Some(false),
                    })), // Add this
                    ..Default::default()
                },
            )),
            ..Default::default()
        },
        server_info: Some(ServerInfo {
            name: "grammar-lsp".to_string(),
            version: Some("0.1.0".to_string()),
        }),
    })
}

Add a stub grammar checker (add to the Backend impl):

async fn check_grammar(&self, _uri: &Url, text: &str) -> Vec<Diagnostic> {
      // TODO: Actually check grammar. will update after LLM integration
      // For now, return a fake diagnostic to test the flow
      vec![Diagnostic {
          range: Range {
              start: Position { line: 0, character: 0 },
              end: Position { line: 0, character: 5 },
          },
          severity: Some(DiagnosticSeverity::WARNING),
          source: Some("grammar-checker".to_string()),
          message: "Test diagnostic - grammar checking not implemented yet".to_string(),
          ..Default::default()
      }]
  }

Step 4: LLM integration

Now let’s implement the actual grammar checking by calling a local LLM.

We will organize this into separate modules to keep concerns separated. This part is swappable - you could replace Ollama with OpenAI or any other service.

  1. Create the data types (src/ollama.rs):
use serde::{Deserialize, Serialize};

/// Ollama API request structure
#[derive(Debug, Serialize)]
pub struct OllamaRequest {
    pub model: String,
    pub prompt: String,
    pub format: String,
    pub stream: bool,
}

/// Ollama API response structure
#[derive(Debug, Deserialize)]
pub struct OllamaApiResponse {
    pub response: String,
}

/// Grammar issue detected by LLM
#[derive(Debug, Deserialize, Serialize)]
pub struct GrammarIssue {
    pub line: u32,
    pub column: u32,
    pub message: String,
}

/// Structured response from Ollama containing grammar issues
#[derive(Debug, Deserialize, Serialize)]
pub struct OllamaResponse {
    pub issues: Vec<GrammarIssue>,
}

These types map to Ollama’s HTTP API and our expected response format.

  1. Create the grammar check provider (src/grammar_client.rs). What it essentially does:
use crate::ollama::{GrammarIssue, OllamaApiResponse, OllamaRequest, OllamaResponse};

/// Grammar checking provider that interfaces with Ollama HTTP API
#[derive(Debug)]
pub struct GrammarCheckProvider {
    http_client: reqwest::Client,
    model: String,
    api_url: String,
    timeout_secs: u64,
}

impl GrammarCheckProvider {
    /// Create a new grammar check provider with default settings
    pub fn new() -> Self {
        Self {
            http_client: reqwest::Client::new(),
            model: "gemma3:4b".to_string(),
            api_url: "http://localhost:11434/api/generate".to_string(),
            timeout_secs: 60,
        }
    }

    /// Check grammar and spelling in the provided text
    pub async fn check_grammar(&self, text: &str) -> Vec<GrammarIssue> {
        eprintln!("[Grammar Check] Starting check for {} bytes of text", text.len());

        let prompt = self.build_prompt(text);
        let request = self.build_request(prompt);

        match self.send_request(request).await {
            Ok(api_response) => {
                eprintln!("[Grammar Check] Response: {}", api_response.response);
                self.parse_response(&api_response.response)
            }
            Err(e) => {
                eprintln!("[ERROR] Grammar check failed: {}", e);
                vec![]
            }
        }
    }

    /// Build the prompt for the LLM
    fn build_prompt(&self, text: &str) -> String {
        format!(
            r#"You are a grammar and spelling checker. Your task is to find errors in the text below.

  IMPORTANT: You must respond with ONLY valid JSON in this exact format:
  {{
    "issues": [
      {{"line": 1, "column": 5, "message": "Spelling: 'teh' should be 'the'"}},
      {{"line": 2, "column": 10, "message": "Grammar: 'was went' should be 'went'"}}
    ]
  }}

  If there are no errors, return: {{"issues": []}}

  Rules:
  1. line numbers start at 1
  2. column numbers start at 0
  3. message format: "<error type>: '<incorrect>' should be '<correct>'"
  4. error types: "Spelling" or "Grammar"
  5. Do NOT include explanations, only the JSON object

  Text to analyze:
  {}"# ,text)
    }

    /// Build Ollama API request
    fn build_request(&self, prompt: String) -> OllamaRequest {
        OllamaRequest {
            model: self.model.clone(),
            prompt,
            format: "json".to_string(),
            stream: false,
        }
    }

    /// Send request to Ollama API with timeout
    async fn send_request(&self, request: OllamaRequest) -> Result<OllamaApiResponse, String> {
        eprintln!("[Grammar Check] Calling Ollama API...");

        let response = tokio::time::timeout(
            std::time::Duration::from_secs(self.timeout_secs),
            self.http_client
                .post(&self.api_url)
                .json(&request)
                .send(),
        )
        .await
        .map_err(|_| "Ollama timeout".to_string())?
        .map_err(|e| format!("Ollama request failed: {}", e))?;

        eprintln!("[Grammar Check] Ollama responded");

        response
            .json::<OllamaApiResponse>()
            .await
            .map_err(|e| format!("Failed to decode API response: {}", e))
    }

    /// Parse the JSON response from Ollama into grammar issues
    fn parse_response(&self, response_text: &str) -> Vec<GrammarIssue> {
        match serde_json::from_str::<OllamaResponse>(response_text) {
            Ok(grammar_response) => {
                eprintln!("[Grammar Check] Found {} issues", grammar_response.issues.len());
                grammar_response.issues
            }
            Err(e) => {
                eprintln!("[ERROR] Failed to parse JSON: {}", e);
                eprintln!("[ERROR] Raw response: {}", response_text);
                vec![]
            }
        }
    }
}

Key things to notice:

  1. Error handling: If Ollama fails or times out, we return an empty list instead of crashing. This keeps the editor/client functional even when the LLM is unavailable.
  2. 60-second timeout: Local LLM requests can be slow. Without a timeout, a hung request would freeze the server. Depending on your machine spec, you might need to finetune this value.
  3. eprintln! for logging: All debug output goes to stderr, which LSP clients redirect to log files. This is how you’ll debug issues. Although in production environment you should use tracing-appender and tracing-subscriber crate for better logging and tracing configuration.

With our LLM call module completed, We can now update main.rs to use the new grammar check provider that we just implemented:

// --> import modules
mod grammar_client;
mod ollama;

use grammar_client::GrammarCheckProvider;

#[derive(Debug)]
struct Backend {
    client: Client,
    documents: DashMap<String, String>,
    grammar_provider: GrammarCheckProvider, // --> Add this field
}

impl Backend {
    fn new(client: Client) -> Self {
        Self {
            client,
            documents: DashMap::new(),
            grammar_provider: GrammarCheckProvider::new() // --> Add this field
        }
    }
}

And replace the stubbed check_grammar to actually call the provider:

async fn check_grammar(&self, _uri: &Url, text: &str) -> Vec<Diagnostic> {
    let issues = self.grammar_provider.check_grammar(text).await;

    issues
        .into_iter()
        .map(|issue| {
            // LSP lines are 0-indexed, but LLM returns 1-indexed
            let line = if issue.line > 0 { issue.line - 1 } else { 0 };

            Diagnostic {
                range: Range {
                    start: Position {
                        line,
                        character: issue.column,
                    },
                    end: Position {
                        line,
                        character: issue.column + 1,
                    },
                },
                severity: Some(DiagnosticSeverity::WARNING),
                source: Some("grammar-checker".to_string()),
                message: issue.message,
                ..Default::default()
            }
        })
        .collect()
}

Finally, update the didClose to clear diagnostics when a file closes:

async fn did_close(&self, params: DidCloseTextDocumentParams) {
        let uri = params.text_document.uri.to_string();
        self.documents.remove(&uri);

        // Clear diagnostics
        self.client
            .publish_diagnostics(params.text_document.uri, vec![], None)
            .await;
    }

That’s it! The language server implementation is done. Let’s build and test.

Run: cargo build --release The binary will be at target/release/grammar-lsp

Create a test file with some content that you would like to check for grammar or spelling errors.(Ideally with some errors)

Now in order to test, we need an editor. I will show how it would look like for neovim. But you can use any editor/IDE for that matter. You might need to adjust the client side integration as per your editor’s expected language/format.

Neovim Integration

Create a lua file(init.lua). For now, place it in the lsp project directory for simplicity.

Conceptually, what you need on the client side is:


-- 0. Setup the paths
local lsp_path = vim.fn.fnamemodify(debug.getinfo(1, 'S').source:sub(2), ':p:h')
local binary_path = lsp_path .. '/target/release/grammar-lsp'
-- 0. [Optional] create a custom log file, otherwise it will log in `~/.local/state/nvim/lsp.log`
local log_file = lsp_path .. '/grammar-lsp.log'

-- 1. Start LSP client
local client = vim.lsp.start_client({
  name = 'grammar-lsp',
  cmd = {'sh', '-c', binary_path .. ' 2>' .. log_file},
  filetypes = {'markdown'}, -- only for markdown, but you can add multiple patterns
  root_dir = vim.fn.getcwd(),
})

-- 2. Auto-attach to markdown buffers
vim.api.nvim_create_autocmd('FileType', {
  pattern = 'markdown',
  callback = function()
    vim.lsp.buf_attach_client(vim.api.nvim_get_current_buf(), client) -- attaching the client to the current buffer
  end,
})

Test

Grammar LSP Demo
Figure 5: Grammar LSP showing warnings

Debugging

A few things I have found useful while debugging in case something doesn’t work:

  [Grammar Check] Starting check for 123 bytes
  [Grammar Check] Calling Ollama API...
  [Grammar Check] Found 3 issues

Recap

Let’s recap what we built:

  1. LSP Layer(main.rs): Handles protocol and implements LSP methods - initialize, document sync, publishing diagnostics.
  2. Provider Layer(grammar_client.rs): Encapsulate grammar checking logic - HTTP, parsing, error handling.
  3. Data Layer(ollama.rs): Type definitions for requests/responses.

You can swap out the ollama provider to any LLM provider of your choice. the LSP layer stays the same - It just calls check_grammar() and publishes whatever comes back.

See the full code in the github-repo

Next Steps

Here are a few things you could try from here:

In terms of features, here are few ideas to try:

Personal Notes
